FTTH Clear Fiber Optic Cable Protection Sleeve Double Steel Rod

Brand Name : XXR

Model Number : OFSS-60C

Certification : SGS

Place of Origin : China

MOQ : 50,000pcs

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 200K pcs/day

Delivery Time : 5-7 days

Packaging Details : 50 pcs/pack

Name : double steel rod drop cable protection sleeve

Steel rod : 1.0MM

Outer tube : PE

Inner tube : EVA

Packing : 50pcs

Color : transparent

Suitable for : drop cable protection box

Brand : XXR

Contact Now

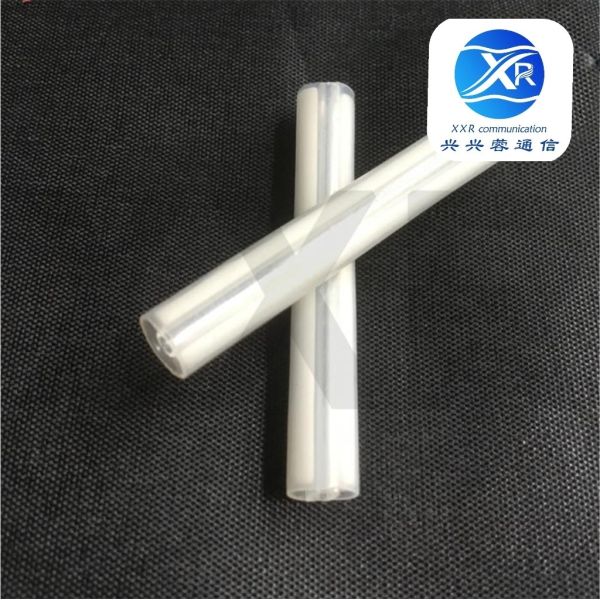

Double Steel Rod Clear Fiber Optic Cable Protection Sleeve

Also called “FTTH Drop Splice Closure”, “FTTH Drop Repair Splice Closure ”, “FTTH Drop Repair joint kits”

This Fiber Drop Splice Closure is used in FTTH Connection. We use this Fiber Drop Repair Splice Closure to make heat Shrinkable Splice with 2 Drop Cable (Or Drop Cable SC Connector Terminated one side). Designed for either Flat Drop Cable or Round Drop Cable. This Fiber Drop Repair Splice Closure is installed indoor or Outdoor, provide good connection and protection in FTTH Constructions.

Optical cable protection is made of PE/EVA , with stainless steel rod diameter 1.0mm, Shrunk OD 3.5mm,3.6mm and 3.8mm. It's shape and design almost same as single fiber splice sleeve, just the outer diameter after shrinking and inner diameter are different.

The cable protection sleeve is usually installed in the protection box for protecting cable joint .

Application: optical communication field.

Features: parts splicing, enhanced protection, supporting positioning, reliable.

Used for: FTTH optical cable joint protection box.

Part No.	Spec. (mm)	Seel rod dia.(mm)	Outer tube L.(mm)	OD after shrinking (mm)	Inner tube L.(mm)	ID (mm)
OFSS-60C	60-2	1.0	60	3.6	60	3.5
OFSS-55C	55-2	1.0	55	3.6	55	3.5
OFSS-50C	50-2	1.0	50	3.6	50	3.5
OFSS-45C	45-2	1.0	45	3.6	45	3.5
OFSS-60C	60-1	1.0	60	3.5	60	3.8
OFSS-55C	55-1	1.0	55	3.5	55	3.8
OFSS-50C	50-1	1.0	50	3.5	50	3.8
OFSS-45C	45-1	1.0	45	3.5	45	3.8
