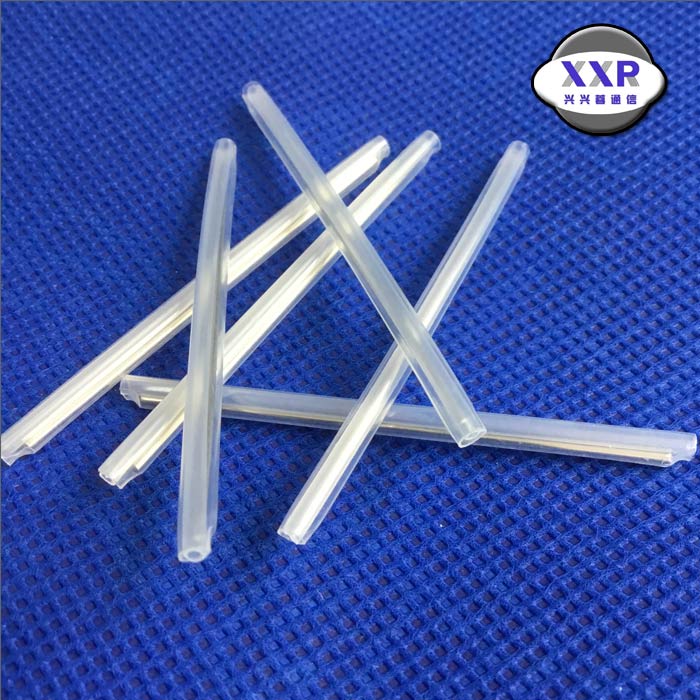

Heat Shrinkable Fiber Splice Protector 96 Cores Fiber Optic Closure

Brand Name : XXR

Model Number : OFSS-60T

Certification : SGS

Place of Origin : China

MOQ : 50,000 pcs

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 200K pcs/day

Delivery Time : 5-7 days

Packaging Details : 100 pcs

Name : 3.6mm OD fusion splice tube

Brand : XXR

Steel rod : 1.2MM

Use : FTTx & FTTH

Model : FPS-60T

Length : 60MM

Color : clear

OD : 3.6MM

Used for : fiber closure

Contact Now

Heat Shrinkable Tubing Fiber Optic Fusion Splice Sleeve for 96 Cores Fiber Optic Closure

Materials

Made from "Full hard" stainless steel of 304 grade and is ground at the edges before

polishing to make it completely burr free to avoid rupturing during shrinking,

304 grade gives better Moisture & corrosion resistance,even in coastal environment.

Resistant to heat shocks,no cracking dripping or flowin.

Production Line

The company has three advanced production lines, including steel rod production line,

plastic tube production line and automatic-assembly production line.the capability of

producing sleeves exceeds 200,000 pieces a day.

Production Capability

180000 pcs per day

Usage: It is used for 96 Cores Fiber Optic Closure

Specifications:

Part No.	Spec. (mm)	Steel rod dia.(mm)	Outer tube L.(mm)	OD after shrinking (mm)	Inner tube L.(mm)	ID (mm)
OFSS-40T	1.5 * 40	1.5	40	3.0	40	≥1.2
OFSS-45T	1.5 * 45	1.5	45	3.0	45	≥1.2
OFSS-60T	1.5 * 60	1.5	60	3.0	60	≥1.2
OFSS-40T	1.2 * 40	1.2	40	2.7	40	≥1.2
OFSS-45T	1.2 * 45	1.2	45	2.7	45	≥1.2
OFSS-60T	1.2 * 60	1.2	60	2.7	60	≥1.2
OFSS-40T	1.0 * 40	1.0	40	2.5	40	≥1.2
OFSS-45T	1.0 * 45	1.0	45	2.5	45	≥1.2
OFSS-60T	1.0 * 60	1.0	60	2.5	60	≥1.2

Payment: T/T, Western Union, others

Delivery: By Air via DHL, FedEx,UPS, TNT, EMS etc or By Sea.

Lead time: 5-7 days

Heat Shrinkable Fiber Splice Protector 96 Cores Fiber Optic Closure

Application:

Product Tags:

Heat Shrinkable Fiber Splice Protector

2.36in Fiber Splice Protector

SGS protection sleeve fiber optic

Heat Shrinkable Fiber Splice Protector 96 Cores Fiber Optic Closure Images
